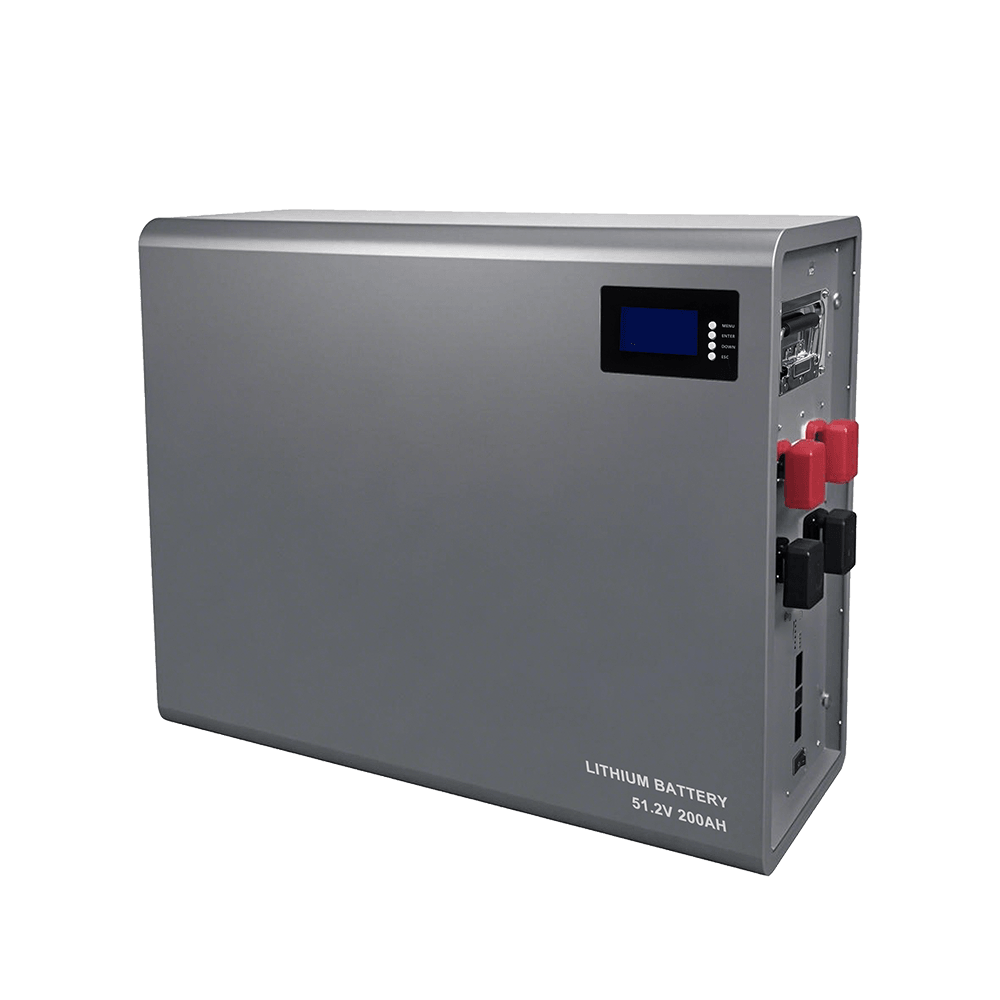

Floor-standing lithium battery
Model:HA PRO MAX
24V 48V LiFePO4 with floor-standing design.
Adopt intelligent BMS system for all-round protection.
Grade A batteries are robust and reliable.
Bluetooth communication optional.
150A BMS for inverters or solar systems.
All-round protection and unattended operation.
Long-life design, battery cycle time up to 5000 times, 5-year warranty, 10+ lifespan design
LED and RGB light display battery capacity.
Feature
24V 48V LiFePO4 with floor-standing design.
Adopt intelligent BMS system for all-round protection.
Grade A batteries are robust and reliable.
Bluetooth communication optional.
150A BMS for inverters or solar systems.
All-round protection and unattended operation.
Long-life design, battery cycle time up to 5000 times, 5-year warranty, 10+ lifespan design
LED and RGB light display battery capacity.
Details
| model | HA PRO MAX25.6V200Ah | HA PRO MAX25.6V300Ah | HA PRO MAX51.2V200Ah | HA PRO MAX51.2V300Ah |
| Types of structures | Floor | |||
| Battery type | LiFePO4 | |||
| Normal battery voltage (Vdc) | 25.6V | 25.6V | 51.2V | 51.2V |
| Normal Capacity (25°C 0.2C) (AH) | 200AH | 300AH | 200AH | 300AH |
| Normal Capacity (25°C 0.2C) (WH) | 5120WH | 7680WH | 10240WH | 15360WH |
| Fast Charge Voltage (Vdc) | 28.0V | 28.0V | 56.0V | 56.0V |
| Operating Voltage Range (Vdc) | 22.4~29.2V | 22.4~29.2V | 44.8~58.4V | 44.8~58.4V |
| Maximum continuous discharge current (A) | 150A | 150A | 150A | 150A |
| Maximum Pulse Discharge Current (A) | 200A 30Sec. | 200A 30Sec. | 200A 30Sec. | 200A 30 Sec. |
| Maximum continuous charging current (A) | 100A | 100A | 100A | 100A |
| Terminal | M8 | |||
| Storage temperature | 0℃~30℃ | |||
| IP degree | IP 20 | |||
| Storage duration | 6 months at 25°C | |||
| Safety standards | UN38.3,MSDS | |||
| display | LED | |||
| Communication port (optional) | RS485/Bluetooth (Optional) | |||
| protection | ||||
| protection | Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, and over-temperature protection | |||
| environment | ||||
| Operating temperature | -10℃~+50℃ | |||
| humidity | 0~95% (no condensation) | |||
| Sea level (m) | ≤1500 | |||
| size | ||||
| Length× width× height (product size, mm) | 568*734*188mm | 1000*734*188mm | ||
| Length× width× height (package size, mm) | 620*782*240mm | 1060*780*236mm | ||
| Weight (NW Kg) | 76.6Kg | 80.0Kg | 142.3Kg | 153.0Kg |
| Weight (GW Kg) | 81.0Kg | 83.0Kg | 157.0Kg | 167.0Kg |
